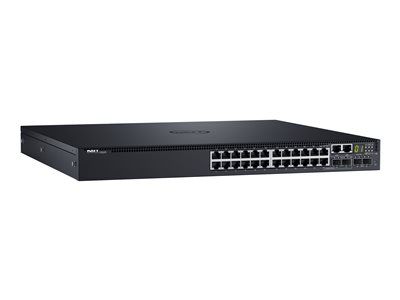

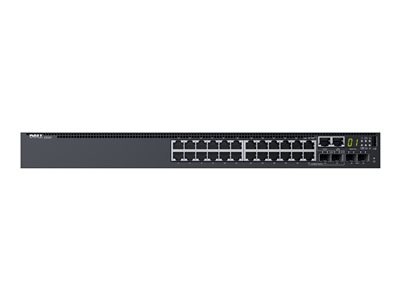

Dell Networking S3124 - Switch - L3 - Managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP - front to back airflow - rack-mountable - Dell Smart Value

Name: Dell Networking S3124 - Switch - L3 - Managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP - front to back airflow - rack-mountable - Dell Smart Value
Brand: Dell
SKU: 210-AIMQ

Dell - Gigabit hubid ja switchid - Networking S3124

Art no: 210-AIMQ

In stock

Logige sisse

Product Information provided by the Manufacturer

Dell Networking S3124T

Data-center-optimized, high-performance 1GbE switches

Optimized for high-performance data center environments, Dell Networking S-Series 1GbE switches:

Deliver low latency, superb performance and high density with hardware and software redundancy
Offer Active Fabric designs using S- or Z-Series core switches to create a two-tier, 1/10/40 GbE data center network architecture
Provide ideal solutions for ToR applications in enterprise, Web 2.0 and cloud service providers’ data center networks

Optimized for the open networking era

Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches.

Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.
Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.
Your choice of network operating system helps simplify data-center fabric orchestration and automation.
A broad ecosystem of applications and tools, open-source and Linux-based, provides more options to optimize and manage your network.

Built for cost-effective deployment

Select S-Series Managed 1/10GbE switches are supported by the Dell Open Automation Framework, a suite of interrelated network management tools that can be used together or independently to provide a flexible, available and manageable network while helping reduce operational expenses.

The Open Automation Framework takes full advantage of Dell Networking Operating System OS9 software capabilities to bring network automation into virtual data center environments. This helps the S-Series switches efficiently respond and adapt to changes in application requirements.

Dell PowerSwitch S3124T / S3124

24 RJ45 10/100/1000Mb auto-sensing ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (200W AC)
Dual hot-swap power supply bays (optional power supply available)

Dell PowerSwitch S3148T / S3148

48 RJ45 10/100/1000Mb auto-sensing ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (200W AC)
Dual hot-swap power supply bays (optional power supply available)

Product Specification Table
Product Description	Dell Networking S3124 - switch - 24 ports - Managed - rack-mountable - Dell Smart Value
Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Front to back airflow rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP
Performance	Switching fabric bandwidth: 212 Gbps Forwarding performance: 158 Mpps
Capacity	MAC addresses: 32000 IPv4 routes: 1024 IPv6 routes: 1024 IPv4 routes (dynamic): 8160 IPv6 routes (dynamic): 4096 Links per group: 16 Priority queues per port: 8 Layer 2 VLANs: 4000 MSTP instances: 64 VRF-lite instances: 64 Host table entries (IPv4): 40000 Host table entries (IPv6): 8000 Multicast table entries (IPv4): 8000
MAC Address Table Size	32K entries
Routing Protocol	VRRP, OSPFv2, IGMPv3, MSDP
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features	MDI/MDI-X switch, port mirroring
Compliant Standards	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power Redundancy	Optional
Dimensions (WxDxH)	43.4 cm x 40.7 cm x 4.35 cm
Weight	6 kg
Manufacturer Selling Program	Dell Smart Value
Manufacturer Warranty	Limited lifetime warranty
UNSPSC	43222612 Network switches
Tootekategooriad	Gigabit hubid ja switchid Hallatavad switchid Rack-mountable hubid ja switchid

Modernize campus network architectures

Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+). S3100 models deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, S3100 series switches offer the open-standard protocols and include technology to interface with Cisco protocol PVST+. The S3100 series supports Dell Networking OS9, VLT and network virtualization features such as VRF-lite and support for Dell Embedded Open Automation Framework.

Leverage familiar tools and practices

All S3100 switches include Dell Networking OS9 for easier deployment and greater interoperability. One common command line interface (CLI) using a well-known command language means a faster learning curve for network administrators.

Deploy with confidence at any scale

S3100 series switches help create performance assurance with a data rate up to 260 Gbps and a forwarding rate. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 ports can be managed from a single screen using the highly-available stacking architecture for high-density aggregation with seamless redundant availability.
